COLUMN SYSTEM

M-A2

2.1 ACTIVE INSTALLATION COLUMN SYSTEM

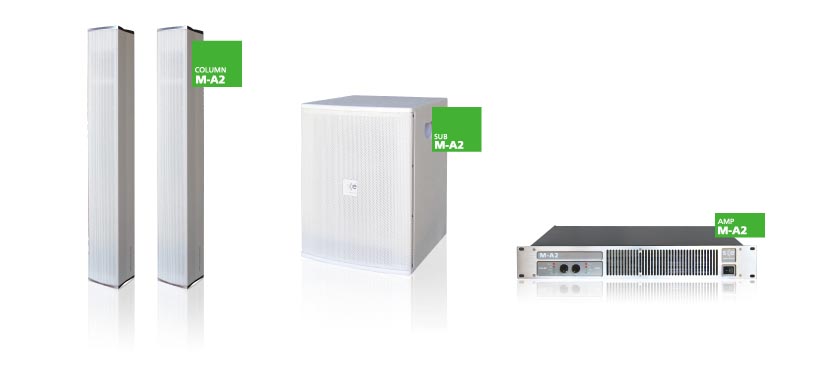

is a compact and modular active all-in-one column system. This installation system features of full range frequency response and stereophonic sound. It is composed of one 2×6.5” sub, two columns and one four-channel amplifier. generates a clear, dynamic and balanced sound throughout the frequency range of this system. The array configuration ensures greater coverage with very well-balanced sound distribution even in the farthest corners of the venue.


SPECIFICATIONS


Type :2.1 ACTIVE INSTALLATION COLUMN SYSTEM
Acoustical Specifications
Frequency Range (-6dB) :50 Hz - 20 kHz
Max.SPL (1m) :121 dB
Horizontal Dispersion (-6dB) :120°
Transducer
LF:2 × 6.5" 28 OZ Ferrite, 1.5" Voice Coil
MF:8 × 2.8" Ferrite, 0.75"Voice Coil
HF:

1 × 1" N35H Neodymium magnet phenolic diaphragm, 1"Voice Coil

Amplifier
Type:Class D amplifier, SMPS
Signal Processing:DSP, 48 kHz, 24 bits
Power Output (RMS) :Subwoofer: 200 W × 2
Column: (100 W + 100 W) × 2
Protection:Multiple limiter, short circuit, overheating
Controls:On / Off switch, main level, sub level
Indicators:On, signal, limit, protect
Input / Output
AMP. Input:XLR
AMP. Output:Neutrik NL4
SUB. Input:Neutrik NL4
SAT. Intput:Neutrik NL4
Cabinet
SUB:V construction, bassreflex，
15 mm plywood, white PU texture paint
SAT:Sealed
6063 Aluminum, HD coating
Dimensions (W × H × D)
SUB:300 × 408 × 346 mm
SAT:110 × 820 × 132 mm
AMP:483 × 66 × 347 mm
Weight
SUB:11.5 Kg
SAT:6 Kg + 6 Kg
AMP:6.5 Kg




DIAGRAM


M-A2 AMPM-A2 AMP

M-A2 COLUMNM-A2 COLUMN

M-A2 SUBM-A2 SUB
