설 치 사 례

International광저우 NetEase R&D

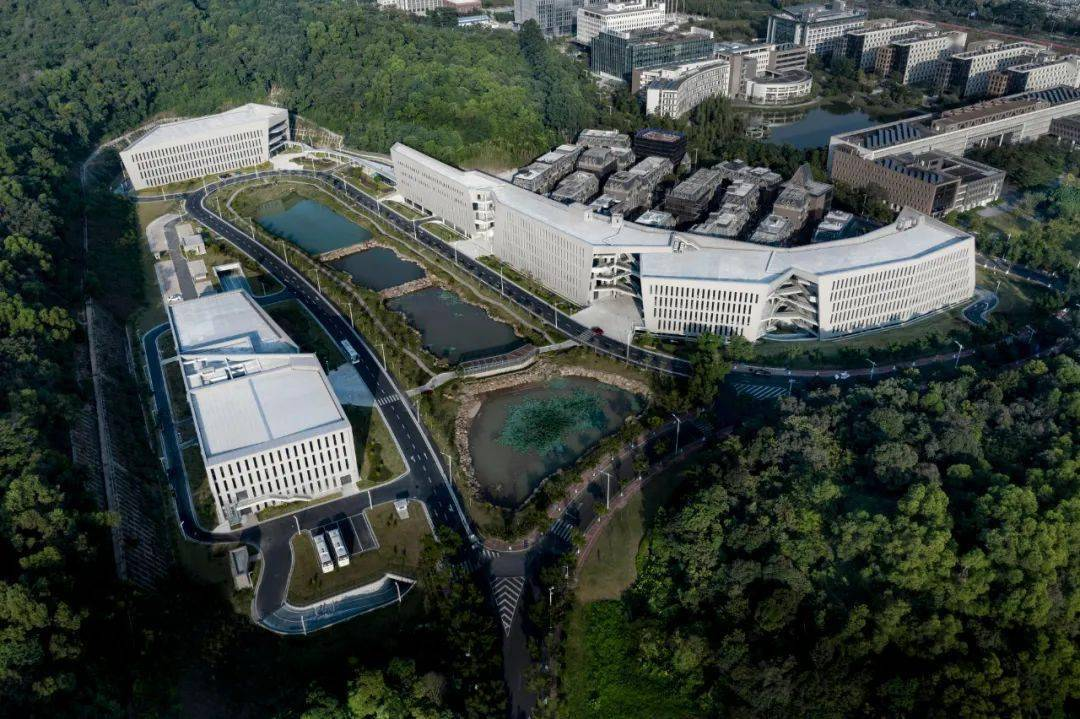

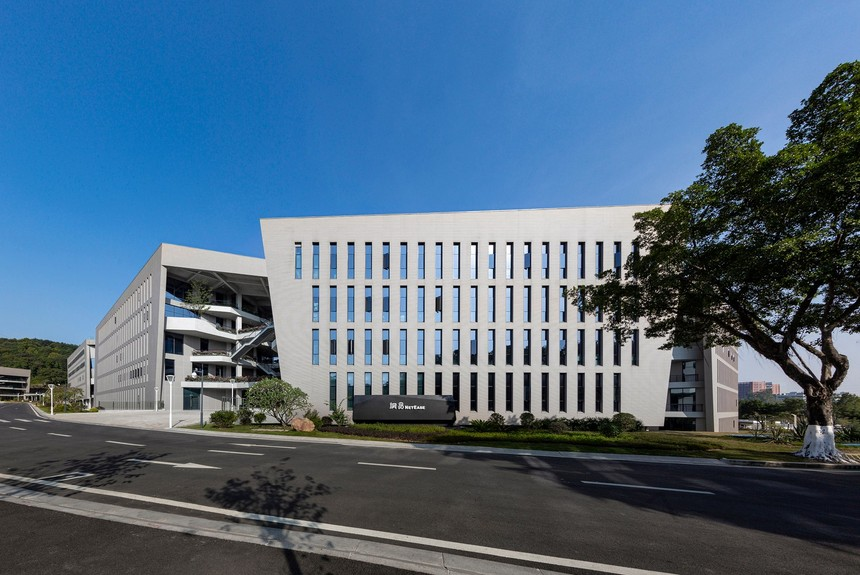

본사건물 전경

NetEase 본사는  광저우  천허지구 다관 습지 공원 옆에 위치하고 있으며, 일명 NetEase 광저우 동후 연구 기지로 알려져 있습니다.





메인 스피커  M-F3A 스피커



M-F3A  액티브 라인 어레이  시스템은 A4 용지 크기에도 불구하고 수평 방향 각도 120° 및 수직 방향 16°의 균일한 커버리지를 달성할 수

있으며, HiFi 등급의 혼 없는 설계 및 대칭 레이아웃을 사용하여 원거리 및 근거리 사운드를 균일하고 왜곡 없이 커버 할 수 있습니다

청취자는 완벽한 사운드를 느낄 수 있으므로 공연과 회의 시스템에 더 나은 음질 경험을 할 수 있습니다.



보조 스피커

IC-34

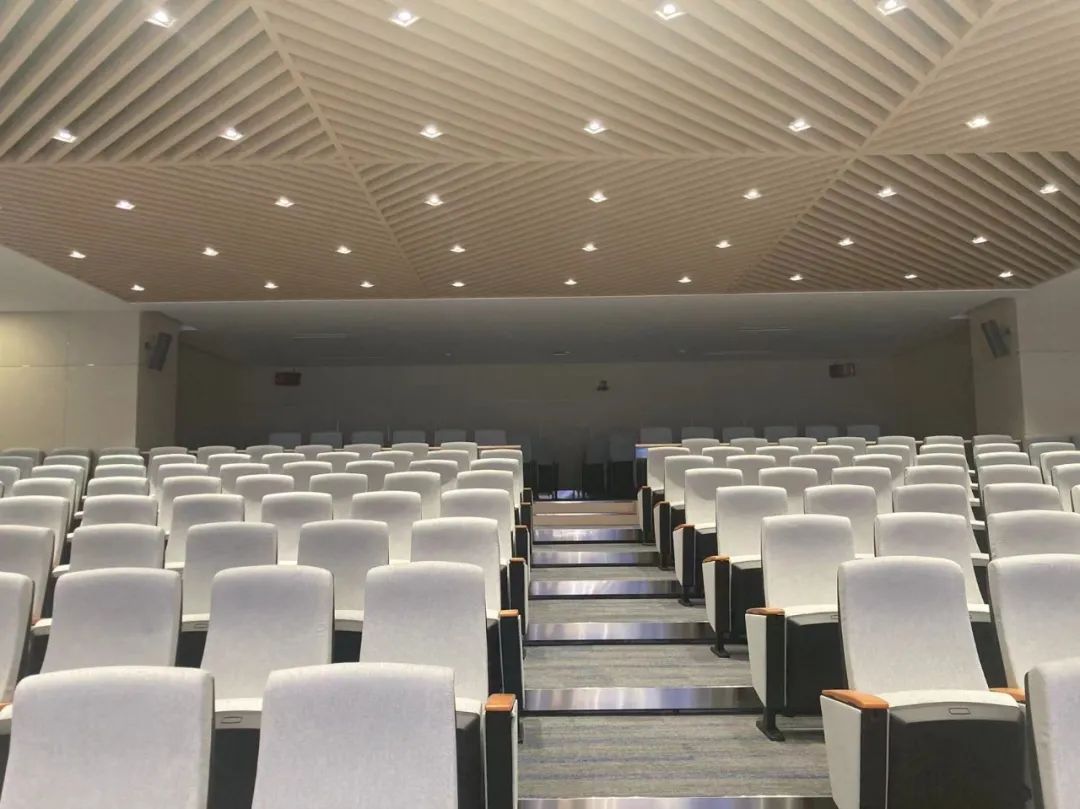

계단식 좌석을 가지고 있고, 깊이가 길면 음향 환경의 사운드 감쇠가 크고, 실내 리버브 시간이 길어져 선명도 및 음악적 선명도 감소

및 기타 영향을 초래할 수 있으므로, 2개의 IC 34 보조스피커를 설치하여  완벽한 사운드를 제공합니다.

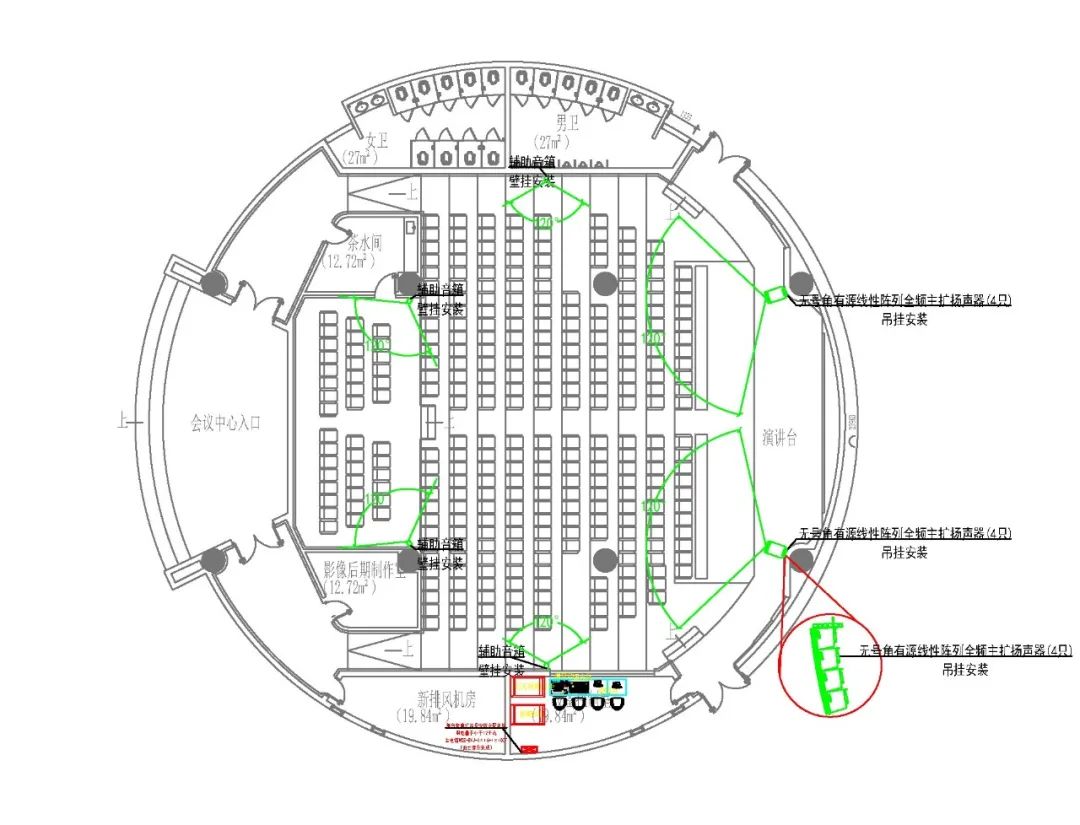

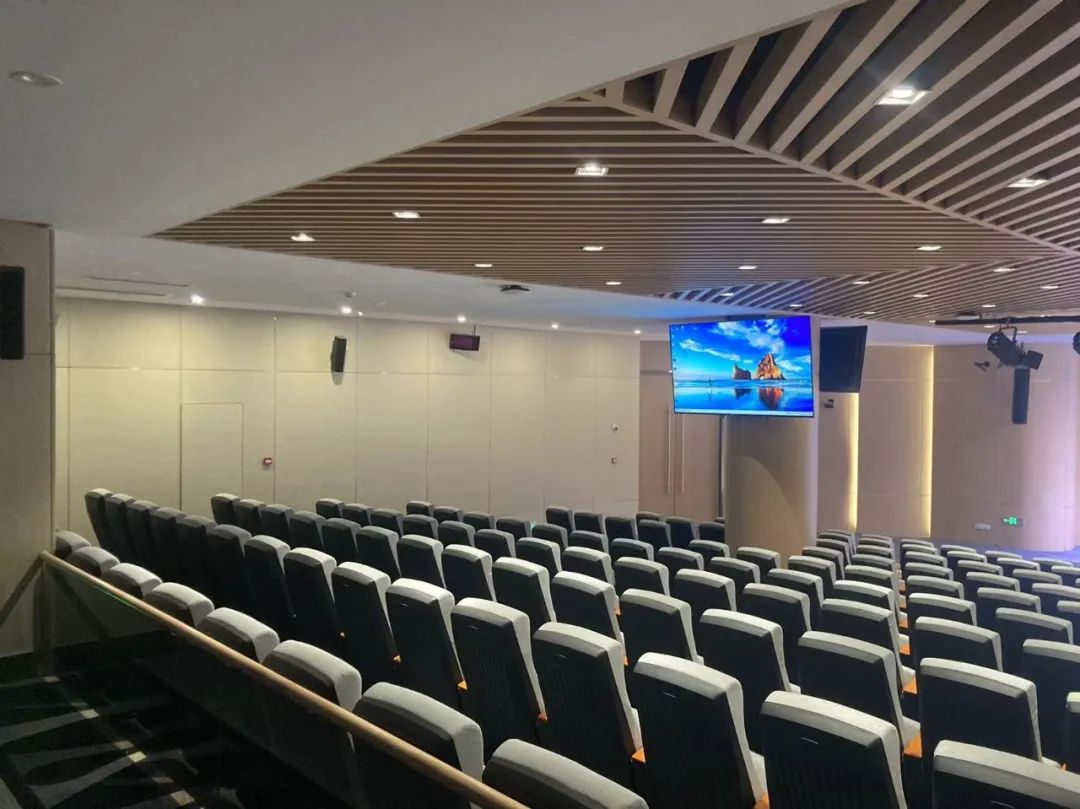

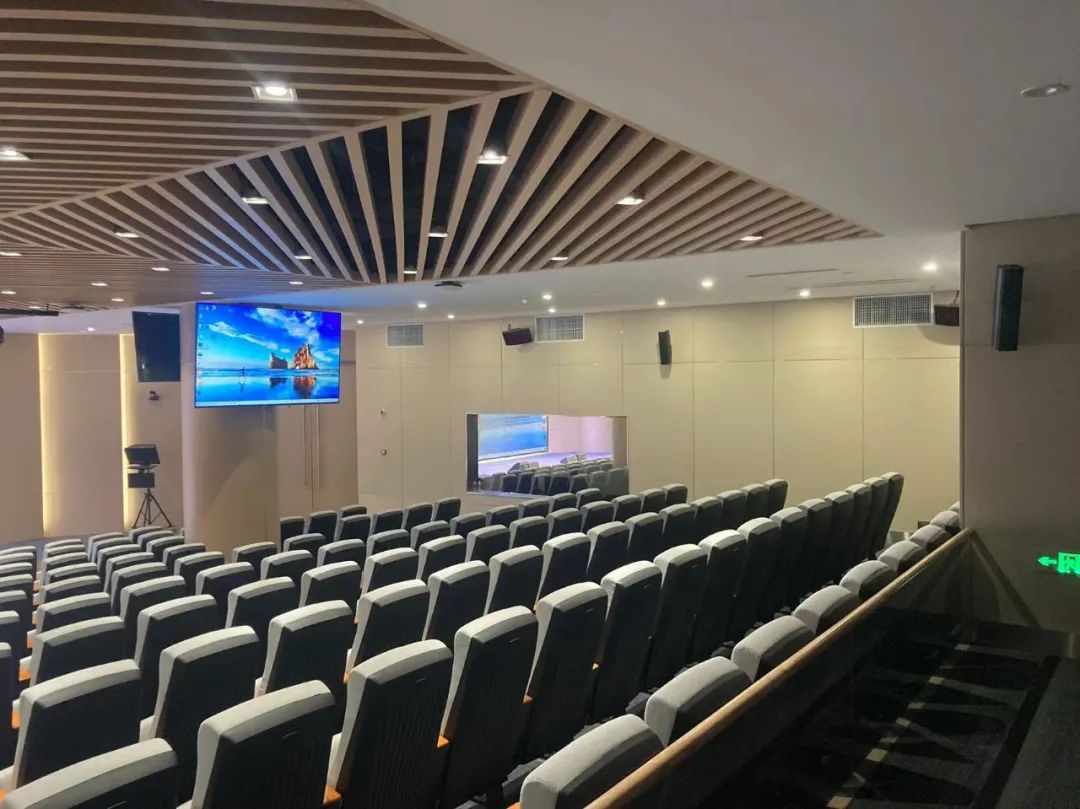

객석 뒷편 후면 벽에 2개의 IC34를 설치하여 리어 게스트 존을 보완하여 사운드 커버리지를 고르게 하여, 전체 객석에 사각지대가 없으며, 슬림한 제품외관은  인테리어 환경과 완벽하게 조화를 이루고 있습니다.

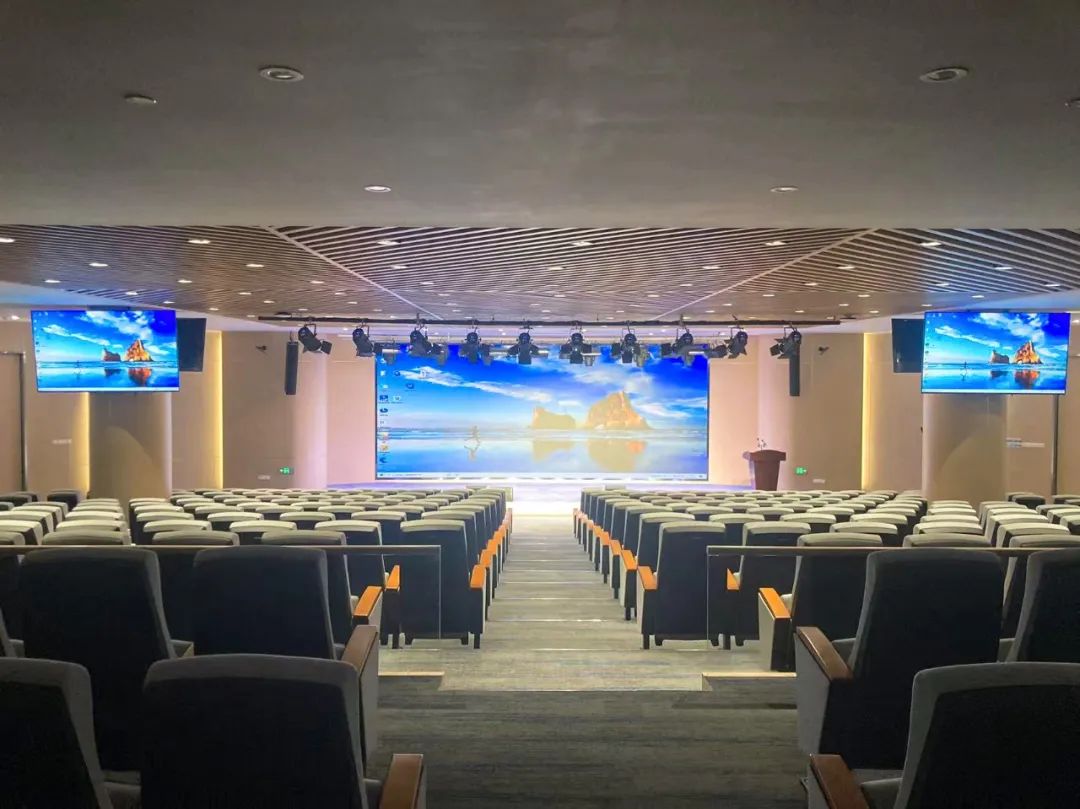

메인 스테이지의 폭과 깊이를 고려하여, 무대 입구에 2개의 K-10i  스피커를 배치되어 있으며,

2개의 M-121MONG2 액티브 모니터 스피커는 연단의 공연자에게 선명하고 부드러운 사운드들 제공합니다.

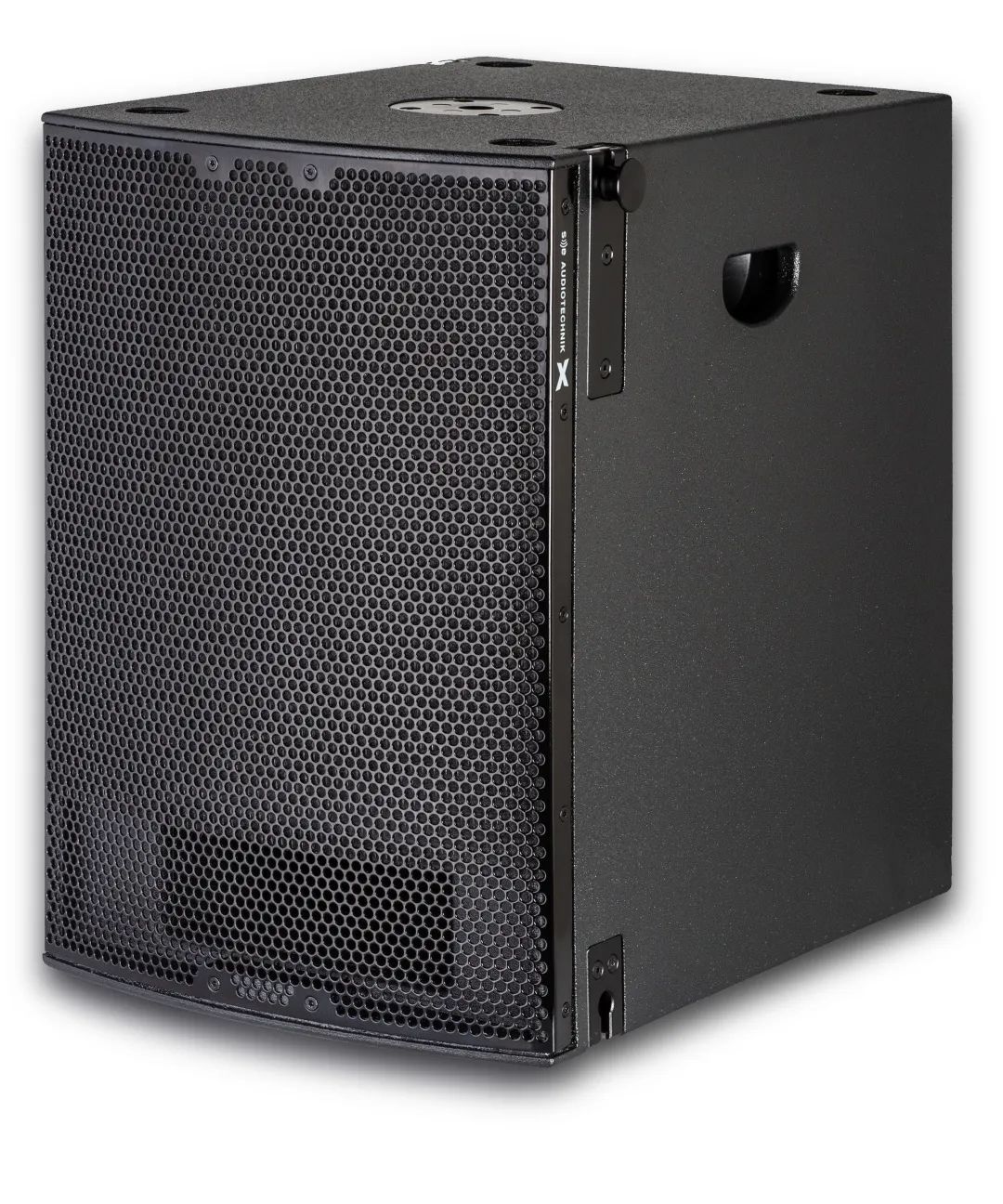

서브우퍼

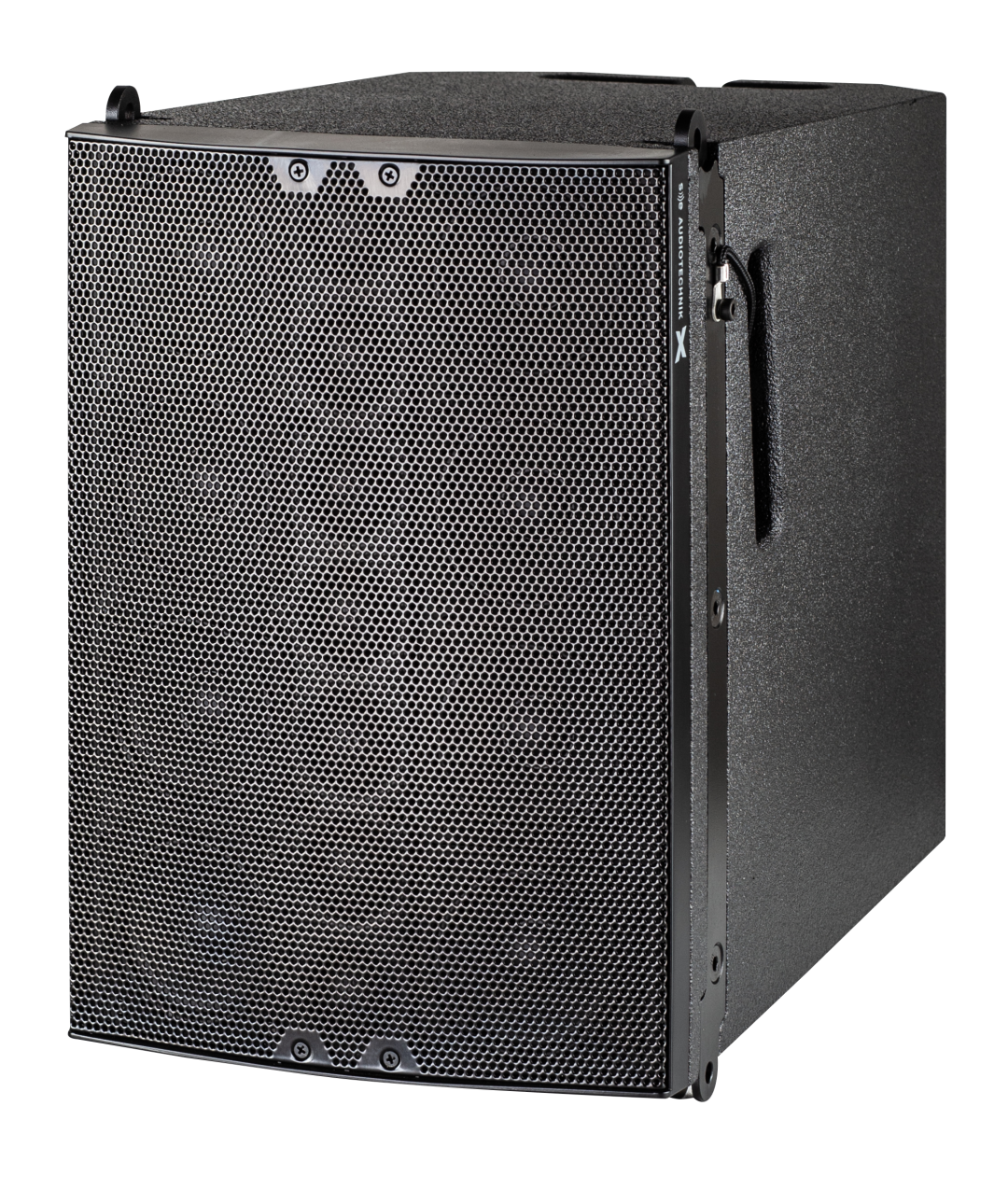

무대 전면에 4개의  M-F3A SUB 스피커가  배치 되어 있습니다.  800W 출력의 클래스 D 방식의   액티브서브우퍼 스피커로

최대 132dB 최대음압의 레벨로 더 강력한 저음을 출력할 수 있습니다.








  *중국  산시 타이신 전자 기술 유한 공사 제공
