Intelligent installation

The I-Line is designed for fixed installations with ambitious requirements regarding aesthetics, speech reproduction and music playback.

The system comprises two different sized column speakers, an adjustable mounting bracket, a dedicated subwoofer and two system amplifiers.

No matter if you want to fill a conference room, the sales area of a shop or a bar with sound – this lineup offers you freedom of choice to compose a setup which suits your needs best.

All speakers are available in both black and white finishes.




Installation Column System

The I-Line is mainly designed for fixed installations with higher requirements in regards to both aesthetics, speech reproduction and music playback. It comprises two column speakers, a dedicated sub and two system amplifiers to flexibly create packages of different sizes for all kinds of small- to medium-sized venues.

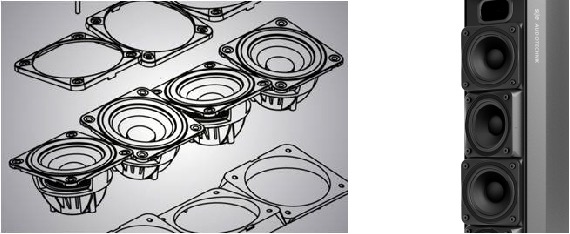

The column speakers are equipped with two or four state-of-the-art 3.5” neodymium drivers respectively. They were specifically designed to reproduce the full range of frequency band by designing a custom basket with advanced cooling module and high-end paper membrane.

The speakers are slightly angled – left and right alternately – to ensure optimal horizontal high-frequency coverage.

Slim and subtle in appearance, IC 32 and IC 34 come in a classy brushed aluminum housing to blend well into many different environments.

Each unit has two 4-pin Phoenix connectors with accompanying switch to make the wiring process as smooth and cost-efficient as possible by also minimizing the required total cable amount.





 Wide horizontal sound coverage



The column speakers are equipped with two or four state-of-the-art 3.5” neodymium drivers respectively. They were specifically designed to reproduce the full range of frequency band by designing a custom basket with advanced cooling module and high-end paper membrane.









S112i Subwoofer

S 112i is a compact single 12” vented subwoofer with built-in 400 Watt class-D power amplifier and sophisticated DSP. Its efficient and unobtrusive design is optimized for installation applications, which allows greater flexibility in regards to general visual design and placement. This subwoofer is available in black and white PU speckle paint finishes.






  IA 202D / 402D Installation Amplifiers


 I-Line offers two 2-channel class-D power amplifiers with switching mode power supply. IA 202D delivers 2x 250 Watts at 8 Ohms while IA 402D provides 2x 200 Watts at 8 Ohms or 2x 400 Watts at 4 Ohms respectively.Each amplifier is equipped with a digital encoder with push button for DSP preset selection, delay settings, EQ adjustments and more.Sensor-controlled fan and optimized front-to-back air flow, together with very low idle power consumption, ensure low noise levels for quiet environments at all times.A combination of XLR, Speakon and Phoenix connectors for in- and output ensures maximum flexibility during the installation process.






 Smart-Mounting-Bracket

Designed by German engineers, the smart-mounting-bracket SMB grants users a lot of mounting flexibility thanks to its ingenious design. It can be individually adjusted on both axes (± 90° in all directions by steps of 10°) and is suitable for ceiling and wall mount.The bracket has a maximum loading capacity of 10 kilograms and comes with a 20 centimeter long safety steel rope to protect the mounted loudspeaker from falling down.






SPECIFICATIONS


Model NameIC32IC34IC38X
Type: Column, bass-reflexColumn, Bass-reflexColumn speaker
Transducers2x3.5"4x3.5"6 x 3.5" + 2x 3.5" coax with 0.5" compression driver
Nominal Impedance16Ω8Ω4 Ω
Continuous Power100W200W400 W
Nominal Coverage (HxV)120ºx60º120ºx40º120° x 30°
Sensitivity
(dB SPL1W/1m)
91dB117dB96 dB
Mas SPL (1m)111dB117dB134 dB
Frequency Response
(-6cB) w/o processing
200Hz - 15kHz120Hz - 15kHz180 Hz - 20 kHz
Audio ConnectorsPhoenix Contact MSTB 4-pin In
Poenix Contact MSTB 4-Pin Out
Phoenix Contact MSTB 4-pin In Phoenix Contact MSTB 4-pin Out1x Phoenix Contact MSTB 4-pin In/Out
Controls2-way input selection switch2-way input selection switch2-way input selection switch
CabinetDie-cast all housing, plasticDie-cast all housing, plasticExtruded aluminium
MountingCentered mounting point for SMB bracket. Vertical and horizontal orientation. Safety wire fixing pointCenter and bottom mounting points for SMB bracket. Safety wire fixing pointCenter and top mounting points for SMB bracket (mounting bracket included).
Cabinet Colorsblack / whiteblack / whiteAvailable in black or white
Dimensions (WxHxD)116x247x150mm116x462x150mm116 x 924 x 150 mm
Weight2kg4kg7.2 kg
