LINE ARRAY

L-35/65 (출시예정)

LA-804D (출시예정)


Discreet | Powerful | Slim

L 35 is an extremely compact line array featuring a sturdy die-cast aluminum front panel, two high- performance 3.5” neodymium drivers and a 1” compression driver. A single unit can deliver up to 123 dB peak SPL* whilst maintaining its characteristic excellent sound quality.



Proficient | Impressive | Seamless

The L 65 module has been designed as a small- to medium-throw line array system which seamlessly blends into the L-Line environment.



Robust | Smart | Power Plant

This dedicated system amplifier was designed for maximum ease of operation, versatility and control, when powering the L-Line line array systems.

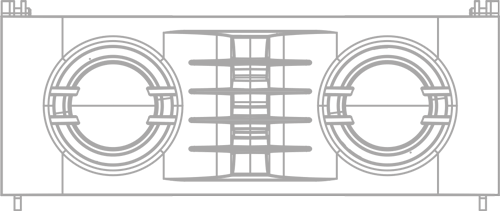

L-35


Clean Wiring
L 35 line array units, just like the L 35FS subwoofer, has a built-in 2-way switch that allows the user to select between two input signals when used with 4-wire cable. This helps to create cleaner looking wiring for both for small or larger systems as only half of the necessary cables are needed. In a standard setup, four L 35 are connected in parallel – the switch feature allows you to connect up to eight elements with only one 4-wire cable.


Small Size
L35 is an exceptionally compact and small line array. Even with its dual 3.5" woofers, 1" compression driver and rigging it weighs only 4 kg. Its compact size and weight also make it extremely easy to transport.



Outdoor Version
The L 35 line array is not only available in both black and white, outdoor models are available for the whole L 35 range. The outdoor versions are equipped with an aesthetically elegant grille that covers and protects the drivers and cabinet.




SPECIFICATIONS



Model:L 35 / L 35 W
Type:bassreflex / closed-box (outdoor)
Frequency Response (-6dB):90 - 19 kHz
Frequency Response (-3dB):110 - 18 kHz
Nominal Impedance:16 Ω
High-Pass Frequency (min. 12 dB / oct.):70 Hz (-6 dB) full range,
130 Hz (-6 dB) with L35 FS subwoofer
Sensitivity (dB SPL @ 1W/1m):91 dB
Continuous Power Handling (AES):100 W
Max. SPL (@1m)*:123 dB
Transducers:2 x 3.5" + 1 x 1" Compression driver
Dispersion (H x V):100° x 20°
Controls:2-way Input Channel Switch (+1/-1 or +2/-2)
Audio Connectors:Neutrik Speakon® NL4 IN / LINK
Splay Angles:0°, 2.5°, 5°, 7.5°, 10°
Rigging:3-point rigging, 2x flat SE rigging pins with clip, 1x standard SE rigging pin
Cabinet:9-14mm plywood, black or white polyurea coating
Dimensions (W x H x D):300 x 111 x 208 mm, 312 x 133 x 230 mm with rigging
Weight:3,6 kg

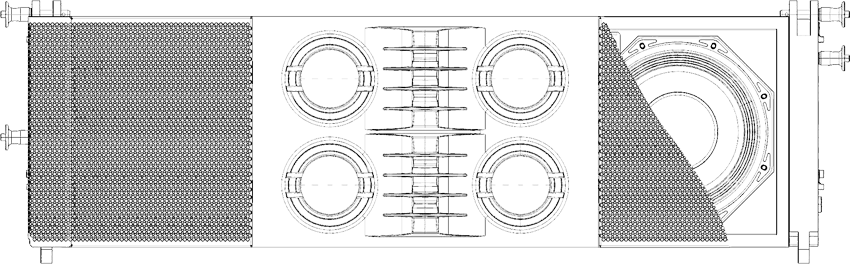

L-65


Impressive punch and dynamics
L 65 line array offers impressive punch and dynamics driven by it's powerful neodymium speaker.


Clean Wiring
L 65 line array units just have an input and a link socket. With these, the user can decide to connect up to 4x (4Ω setups) or even 8x (2Ω setups) L 65 in parallel. This reduces wiring to a minimum of effort and costs.


Stackable Dimensions
L 65 height is exactly two times L 35, which allow easy stacking.

Outdoor Version

L 65 line array is not only available in both black and white color. Outdoor models are available for the whole L 65 range and L 65 then is equipped with aesthetically elegant grill that covers and protects the drivers and cabinet.




SPECIFICATIONS



Model:L 65 / L 65 W
Type3-way, bassreflex, line array element, including passive crossover
Frequency response (-3dB) *:65 – 18 kHz
Nominal impedance (Ω):16 Ω
Sensitivity (1m/1W):≥ 100 dB @ Preset including Subwoofer, hi-pass frequency 140 Hz ≥ 95 dB @ Preset full-range 70 Hz to 20 kHz
Power handling:250 W (RMS), 500 W (Music), 1.000 W (Peak)
Max SPL (@1m) *:136 dB
Dispersion (H x V):100° x 20°
Transducer Coil:2 x 6,5" Woofers with Neodymium magnet, 4 x 3,5" Mid-woofers with Neodymium magnet, 2 x 1" Compression drivers (1,5" VC)
Audio connectors:2x Neutrik® speakON NL8 ( IN / LINK)
Splay angles:0º, 1º, 2º, 3º, 4º, 6º, 8º
Rigging:4-point SE rigging (Unit is sold with rigging material for L65 and L65FS)
Cabinet:Plywood, black or white polyurea paint
Dimensions (mm) (WxHxD)680 x 208 x 320 (without rigging)
Weight (kg):Approx. 20 kg

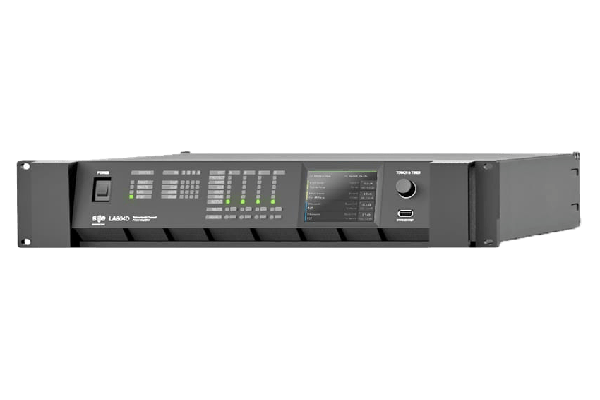

LA 804D
Connectivity

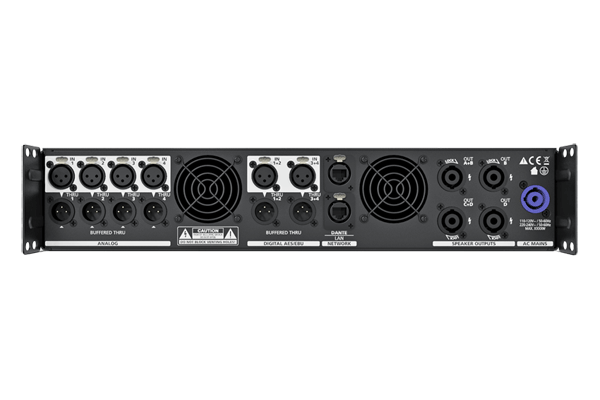

LA 804D power amplifier is equipped with 3 most widely used analog input and output connections in professional audio. 2 channel XLR inputs with link outputs together with Phoenix MSTB 3-pin inputs will cover most of the input needs. Outputs are equipped with 3x Neutrik speakON® connectors in parallel with 4-pin Phoenix MSTB connectors for maximum flexibility.



Integrated DSP

24bit/48kHz DSP processor provides all L-line speakers with correct and precise filter, EQ and limiter settings. As always - good sounding and well protected speaker systems are the ultimate aim of the SE AUDIOTECHNIK engineering team. Built-in speaker presets, EQ control, delay and other features allow for an easy, cost-effective and quick system setup and tuning.







SPECIFICATIONS



Model:LA 804D
Type:Class-D, SMPS
Channels4
Power Output:
2 x 2500 W @ 2Ohm / 2 x 2500 W @ 4 Ohm / 4 x 1250 W @ 2 Ohm / 4 x 800 W @ 4 Ohm
Minimum Load Impedance:2 Ω
Damping Factor:>100
Max. Line Input Level:+23 dBu
Input SNR128 dB(A)
Output SNR (DSP + Amp)112 dB(A)
Analog Line Input Impedance:Minimum 20 kΩ balanced

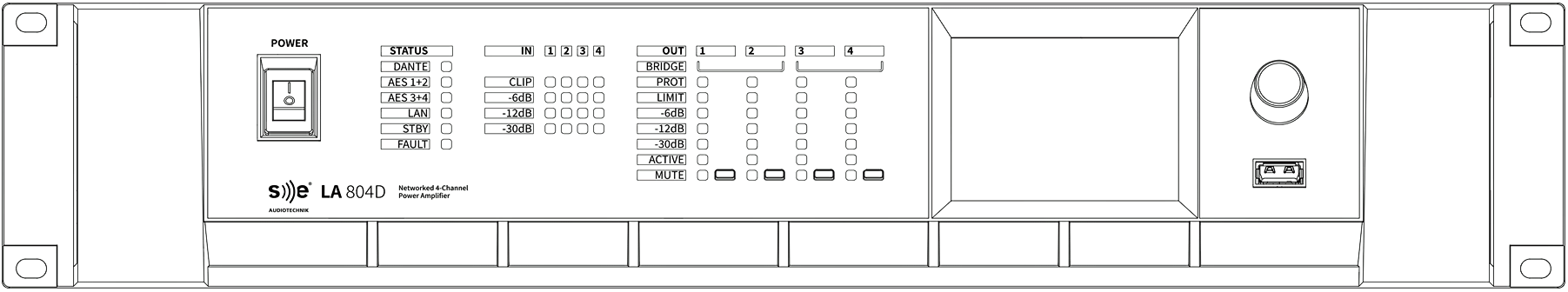

Controls:Control encoder with push-button, 4x channel MUTE, 4x channel SELECT, Power On
Indicators:4x4 Input sig. level LED, 4x4 Output sig. level LED, 4x4 Channel status (power, select, protect, mute), 1x Dante/1x LAN/1x Stand-By/1x Fault Status
Screen3.5" TFT Color display with Touch Panel & 320 x 240 resolution RGB
Analog Audio Connections:4x XLR input / Link
Digital Audio Connections2x AES/EBU (XLR)
Network Connectors:1x etherCON (LAN Control), 1x etherCON (Dante)
Speaker Outputs:4x speakON® NL4
Dante®:Optional, Ultimo Chip, 4 Input Channel
DSP32-bit SHARC CPU with floating point processing
DSP Sampling Frequency48 / 96 kHz
DSP Features:Levels, Parametric EQ, Delay, Phase, RMS Limiter, Peak Limiter, FIR Filtering
Mains Input Voltage:85 - 265 VAC
Power Consumption (Idle, Full Power):30 W / 1000 W
Dimensions (W x H x D):19" x 2 RU x 450mm
