LINE ARRAY

M-F3A FS


The M-F3A FS is a flyable bass extension module for the popular M-F3A PRO line array systems. It uses two specially designed 6″ x 9″ woofers that offer a slim and discreet design in addition to high sound pressure levels. The height is double that of an M-F3A PRO unit, complementing the system in every way.


The unit contains a newly developed 800 W Class D power amplifier and is equipped with a 24-bit/48 kHz DSP. Using the LCD screen and rotary encoder, the user can control various system parameters such as delay, EQ, filter and other parameters.

The user’s configurations can then be saved as user presets. In addition, the built-in factory presets reduce set-up times for existing M-Line systems in various configurations. For example, when flown with the M-F3A PRO, the unit can deliver rich, deep bass to handle setups where there is no room for floor subwoofers.




Features

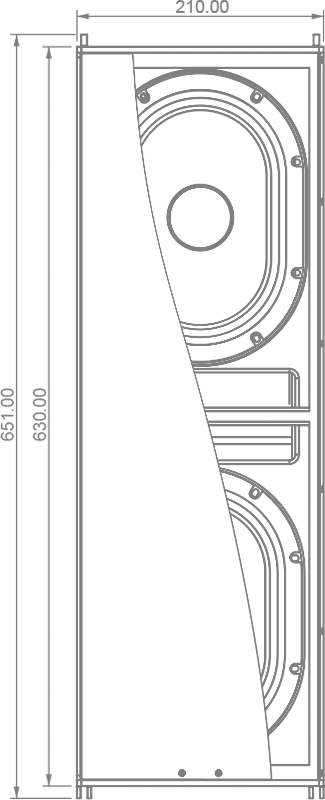

M-F3A FS Drawing

Compact woofers

Each M-F3A FS delivers a powerful, deep bass foundation. Two 6×9″ oval woofers are fitted in order to keep the cabinet as small as possible and at the same time to accommodate as much diaphragm area as possible on the narrow front. True to our motto “Ultra compact, high performance“.
S12 PRO DSP

Integrated DSP

Each M-F3A FS is equipped with an 800W Class-D power amplifier with switching power supply for minimum weight and maximum flexibility anywhere in the world. In addition, our built-in 24bit/48kHz DSP processor provides signal filtering and ensures maximum driver protection with minimal error rate.

EASE Example

Ease®

AFMG® and EASE® Focus 3 GLL files are available for the entire M-F3A PRO family. This allows users to simulate and calculate various parameters such as range, sound pressure level, frequency response, spread angle, delay times and more.

EASE® and AFMG® are registered trademarks of AFMG Technologies GmbH.

.

Specifications


M-F3A PRO Drawing




ACOUSTICAL
Frequency range (-3 dB):60 Hz – 103 Hz
Frequency range (-10 dB):52 Hz – 143 Hz
Coverage angles (-6dB) [H x V]:Omnidirectional
Maximum Peak SPL *:127 dB
System type:1-way active system
Crossover frequency:
Transducers:2 x 6″ by 9″ drivers
Enclosure type:Vented box
AMPLIFICATION
Type:Single channel, class-D with SMPS
Total Power **:800 W
Output power per channel:MF: 300 W
HF: 300 W
Protection:Short circuit, overheating, overcurrent
Connectors:Input signal: balanced XLR 3-pin female
Link output: balanced XLR 3-pin male
Power input: powerCON® 20A
Power link output: powerCON® 20A
Wiring:Pin N: Neutral
Pin L: Conductor
Pin E: Ground
Input sensitivity:0 dBu
DSP:48 kHz/24 bit with extended dynamics
Processing latency: 1.1 ms
Processing:Factory and user presets, EQ, delay, phase inversion
User controls:Power: ON/OFF switch DSP: display with digital encoder
MECHANICAL
Product dimensions [H x W x D] (Including rigging):651 x 265 x 430 mm
Net weight:23 kg
Packaging dimensions [H x W x D]:743 x 310 x 530 mm
Total weight:25 kg
Cabinet:15 mm plywood
Cabinet finishing:Black or white polyurea coating
Grille:Powder coated perforated steel
Hardware:Top handle embedded in cabinet
Rigging:Four-point rigging system
4 x SE Audiotechnik® 6 mm locking pins
Splay angles:0º, 1º, 2º, 3º, 4º, 5º, 6º, 7º, 8º
ACCESSORIES
Bumper frame:M-F3A FS BF
4 to 3 point adapter:M-F3A FA34
Amplifier rain coverP801DL RC
All product specifications are subject to change without prior notice.* Measured with MF3AP preset ** Measured with 12 dB Crest factor Pink Noise, whole space





ACCESSORIES

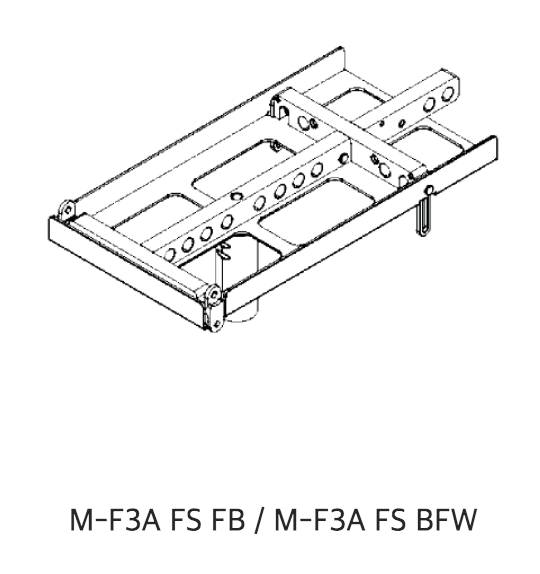

M-F3A FS FB

M-F3A FS BF

Multi-purpose mounting frame for mounting various combinations of M-F3A PRO and M-F3A FS, also available in white.

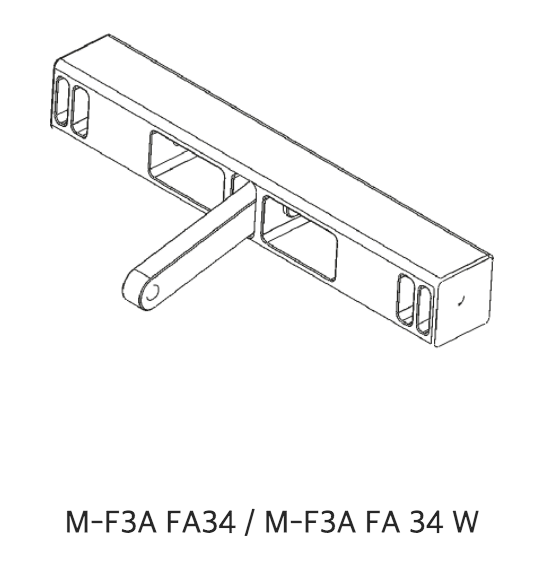

M-F3A FA

M-F3A FA34

3- to 4-point adapter for mounting M-F3A FS or M-F3A PRO, also available in white.

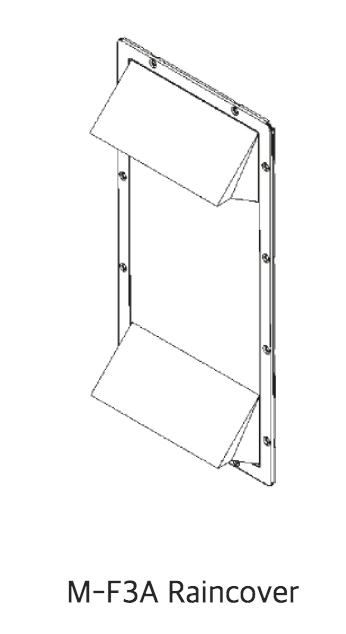

M-F3A PRO RC

P801DL RC

Rain cover for the M-F3A PRO
