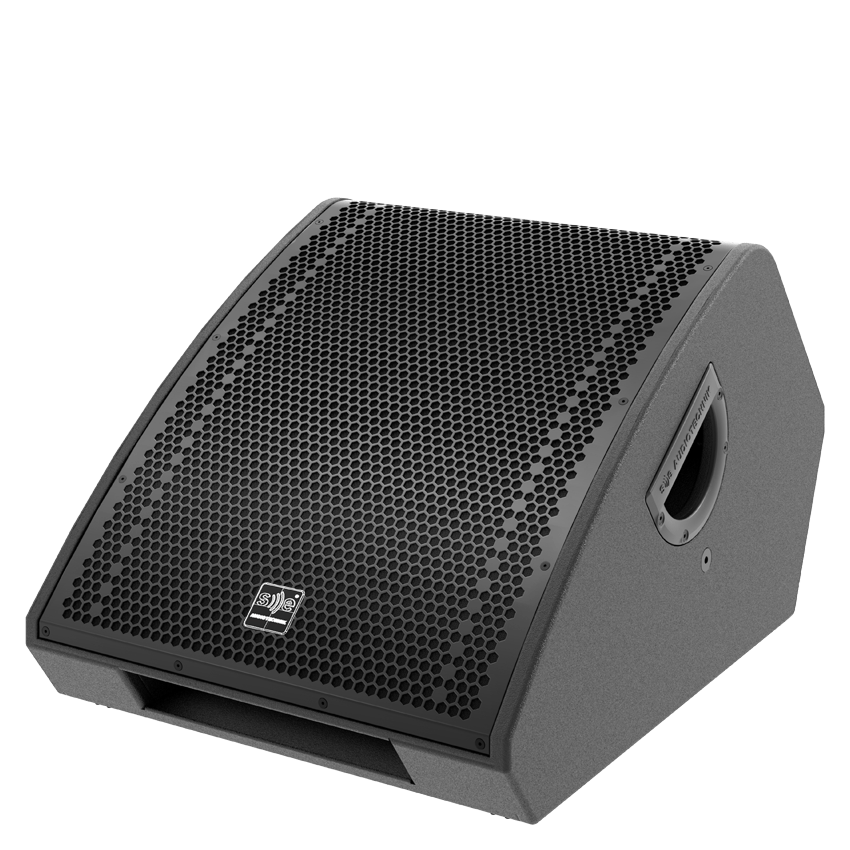

STAGE MONITOR

SMX-12 / SMX-12A


SMX 12 is a compact yet powerful tool for various monitoring requirements on and off stage. The passive crossover provides smooth transition and maximum output. SMX 12 reacts relateable and replicable to equalisation, so you can achieve your preferred sound easily. Rugged materials and surface make it a reliable and high performance tool.


SMX 12는 온·오프 스테이지의 다양한 모니터링 요건을 위한 컴팩트하면서도 강력한 툴입니다. 패시브 크로스오버는 부드러운 전환과 최대 출력을 제공합니다. SMX 12는 상대적인 반응과 복제가 가능해 원하는 소리를 쉽게 낼 수 있습니다. 또한 견고하고 안정적 외관은 신뢰성을 더해 줍니다.



12" High Efficiency Woofer

SMX 12 is a compact yet powerful tool for various monitoring requirements on and off stage.


SMX 12는 온/오프 스테이지에서 다양한 모니터링 요구 사항을 지원하는 컴팩트하지만 강력한 툴입니다.

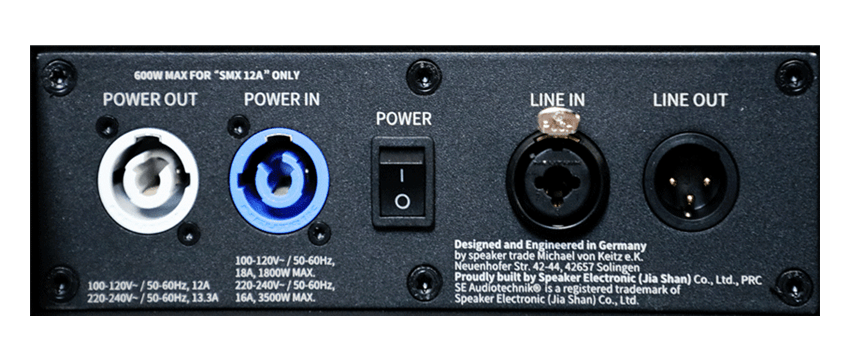

Recessed connector panel

Due to the recessed I/O panel of the monitoring system, no connectors are visible to the viewer.


모니터링 시스템의 I/O 패널이 움푹 들어가 있기 때문에 뷰어에 커넥터가 보이지 않습니다.

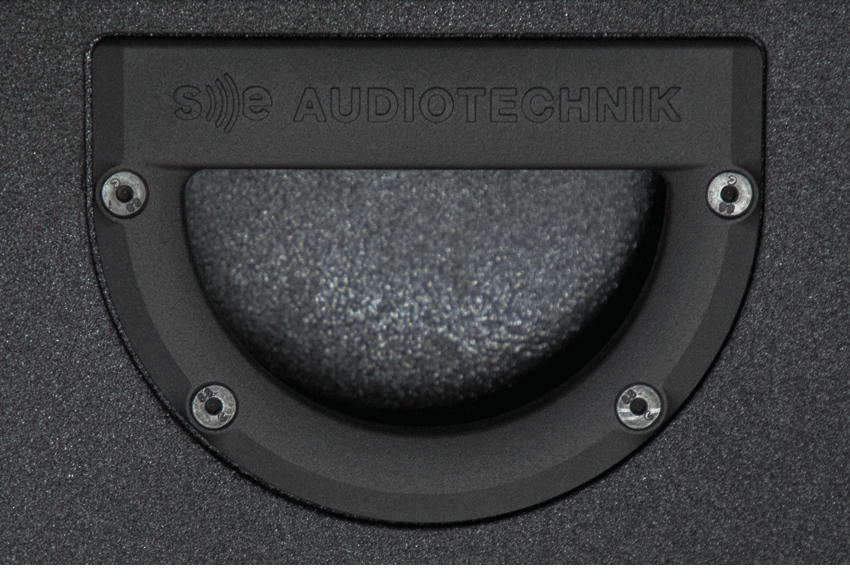

3 handles for easy handling in all situations

By skilfully attaching the 3 handles, the system can be easily transported in any situation.


3개의 핸들을 편리하게 부착함으로써 어떤 상황에서도 시스템을 쉽게 운반할 수 있습니다.

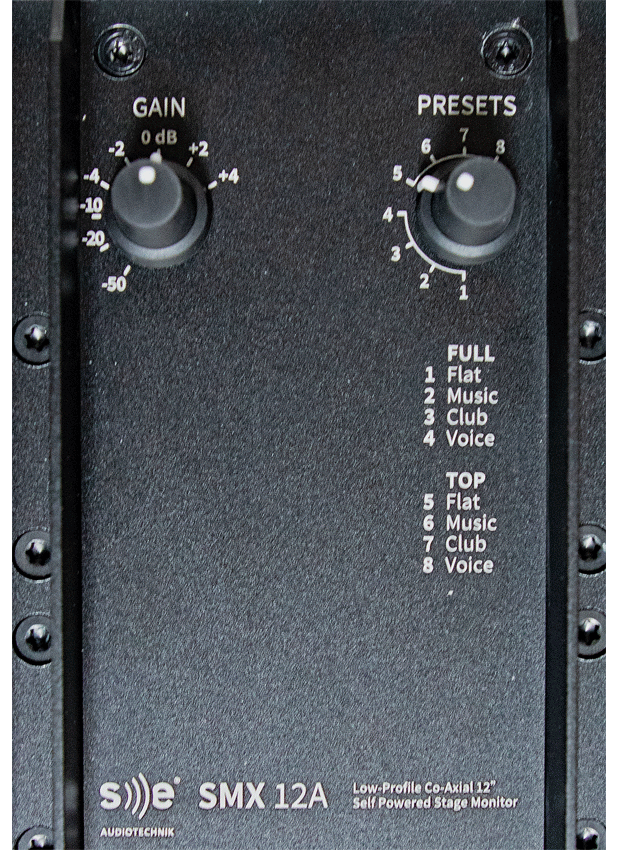

8 DSP Presets

8 DSP application presets, gain and preset selector with 8 factory settings increase the application range.


8 DSP  application preset, gain 및 초기 설정된 8개의 preset selector 설정을 통해 응용의 범위를 늘릴 수 있습니다.





Starfish rubber feet

Slip resistant "Starfish rubber feet" and 3 handles for easy handling in all situations.


바닥의 "불가사리 고무발"은 미끄러짐 저항성을 높이고 3개의 손잡이는 모든 상황에서 손쉬운 핸들링 제공합니다.



Specification




Model:SMX 12
Product Type:Coaxial passive fullrange system
Maximum SPL (continuos/Peak*):117 dB continuous pink noise, 137 dB Peak
Frequency Response:65 Hz - 20,000 Hz, -10dB
Nominal Impedance:8 Ω
Sensitivity:99 dB, 1 W/m
Coverage (H x V):60° x 60°

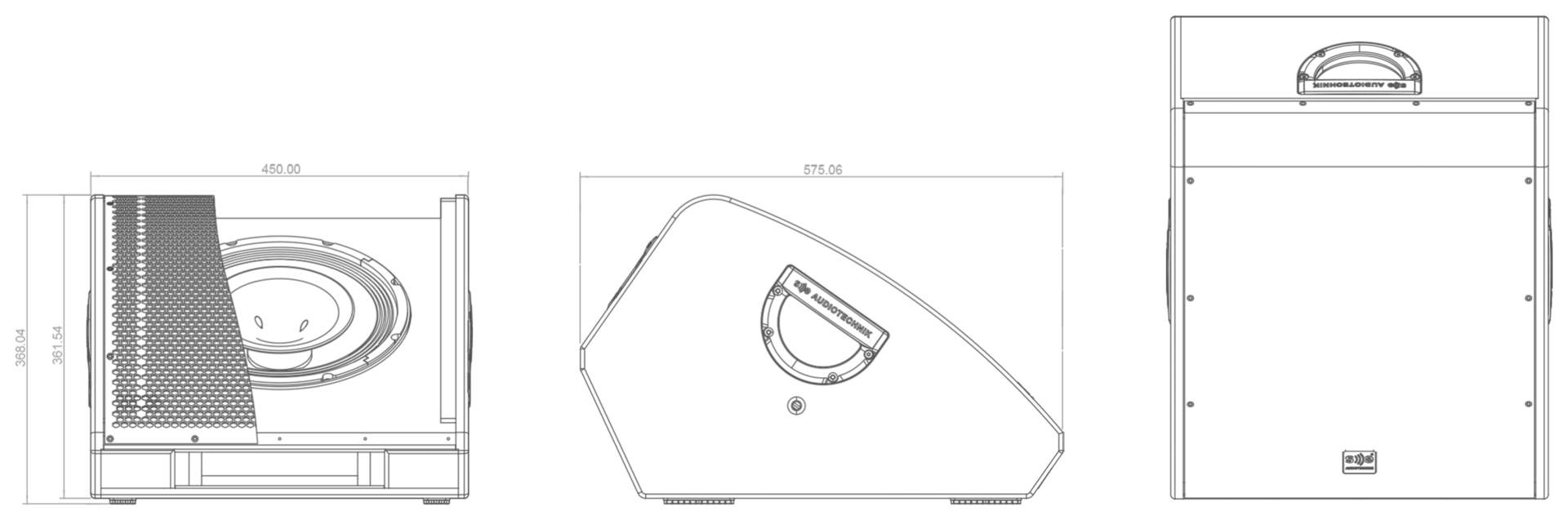

Dimensions H x W x D:368 x 450 x 575 mm
Total Weight:22 kg
Average power handling:400 W, EIA noise (70 Hz 3rd order high pass required)
Peak Power**:1600 W
Cooling System:Passive convection
Cabinet Type:Bass reflex
Housing Material:Plywood
Cabinet Surface:Polyurea coat
Cabinet Colour:Black
Handles:3 handles
Fly points:2x M10


Model:SMX 12A
Product Type:coaxial active fullrange system
Maximum SPL:117 dB continuous pink noise, 136 dB peak
Frequency Response:65 Hz - 20,000 Hz, -6dB
Coverage:60°, 2-5kHz
Dimensions HxWxD:368 x 450 x 575 mm
Total Weight:22 kg
Amplifier:2 channel Class D
Woofer amp:300W @ 8 Ω
Compression driver amp:150W @ 16 Ω
DSP Functions:Gain control, Limiter, Crossover, 8 application presets
Protection:multiband limiter, over voltage, short circuit, overcurrent, temperature
Cooling System:passive convection
Power Supply:switch mode power supply (SMPS), PFC, controller management
Operating Voltage:100 VAC - 240 VAC, 50 - 60 Hz
Power Consumption (max.):600 VA
Cabinet Type:bass reflex
Housing Material:plywood
Cabinet Surface:polyurea coat
Cabinet Colour:black
Handles:3 handles
Fly points:2x M10






Accessories




SMX 12
SMX 12 Rigg-Mount

Maximum Versatility

SMX 12 and SMX 12A are excellent stage monitors – and much more. The extensive accessories allow for a large number of different applications besides classic monitoring. The centrepiece is the SMX 12 UB mounting frame – it allows the SMX 12 and SMX 12A to be tilted steplessly, for example, for wall mounting. With the SMX 12A mounting pole, the SMX monitors can be mounted on a subwoofer in a flash and thus become an ultra-portable PA system or a quickly set-up side fill. Rigging is also possible with the SMX 12 or SMX 12A flown as front fill, for example. In short, using the speakers of the SMX Series exclusively as monitors is an excellent choice – but almost a waste.
SMX 12 Rigg-Mount



SMX 12 UB

SMX 12UB

This U-bracket provides mounting holes for wall mounting or pole support adapter PS35 or other industry-standard hardware, like truss clamp.
PS35

PS35

Pole support adapter, model PS35, M10 to 35 mm speaker poles.
M-F3A SPS20

SPS 20

Distance bar/pole support to connect from M20 thread in subwoofers to PS35.
SMX 12 TC

SMX 12TC

SMX 12 transport and storage protection cover
