V-L4

V-L115B


Dual Two Way Line Array Speaker

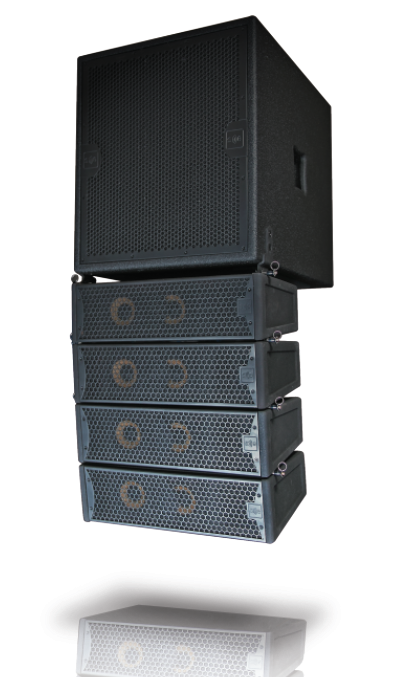

The V-L4 is an ultra compact dual 4" line array system. A lot of features fitted to an ultra compact enclosure with little space requirement and extreme portability. Integrated rigging hardware with hidden safety pins, the variable curvature, time efficient setup allow an inconspicuous integration for any venue. The V-L4 matches up perfectly with the V-L115B Bandpass subwoofers. For non-fiying applications, the V-L4 can be ground stacked on the V-215B subwoofer(mounting hardware included).








SPECIFICATIONS


Model:
V-L4
Type:

Dual Two Way Line Array Speaker

Acoustical Specifications
Frequency Range(-6dB):

80-19KHZ

Max. SPL(1m):

124dB

Horizontal Dispersion(-6dB):120°
Vertical Dispersion(-6dB):

10°x1

Transducer
LF:

2 x 4" Neodymium Magnet, 1" voice coil

1x16Q ( 2 pcs of 80 in series connection)

2x100 W RMS ( AES/2hrs) 2x400 W Peak

Sensitivity(1W / 1M):93 dB
Max. SPL(AES):122 dB
HF:

1" Neodymium Magnet, Titanium diaphragm, 1.35" voice coil

1x16Q

1 x75 W RMS ( AES/2hrs ) 1 x300 W Peak

Sensitivity(1W / 1M):

99dB

Max. SPL(AES):124 dB
Recommended Amplifier:

4 pcs of V-L4 as a set

LF:

2x810 W/8O, Dual channel

HF:

2x325 W/8O, Dual channel

Recommended Crossover Frequency
LF / HF:

2.1 KHz

Enclosure

15mm Birch Plywood, Polyurethane Paint

Rigging System

6061 Aluminium, SUS 630 Stainless Steel Safety pin, 12:1 Safety Factor

Input Interface

Neutrik®Speakon 2xNL-4

pins+ 1/-1 LF

pins+2/-2 HF

Dimensions (W×H×D):

480 x 139 x 261 mm

Net Weight:

9.6kg

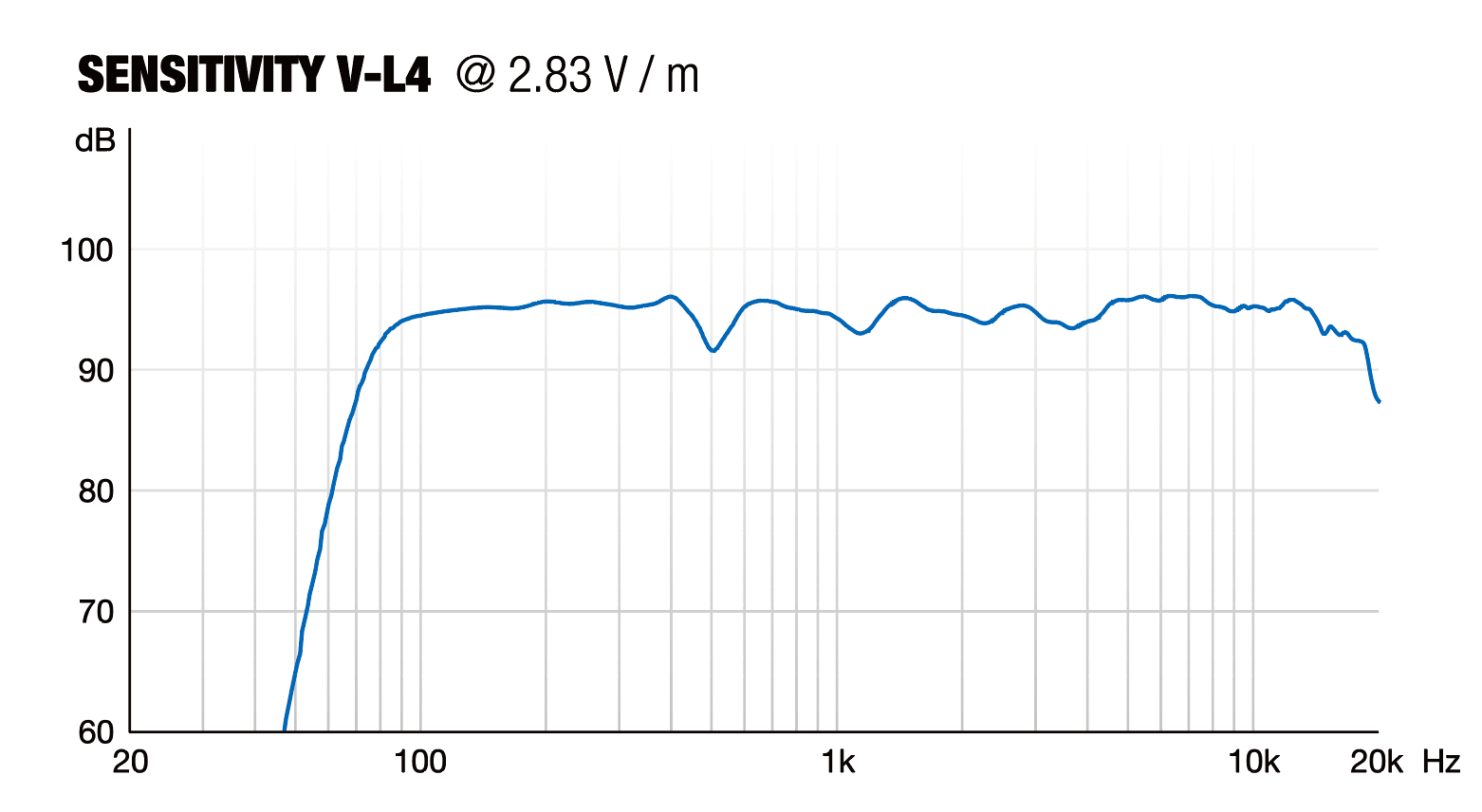

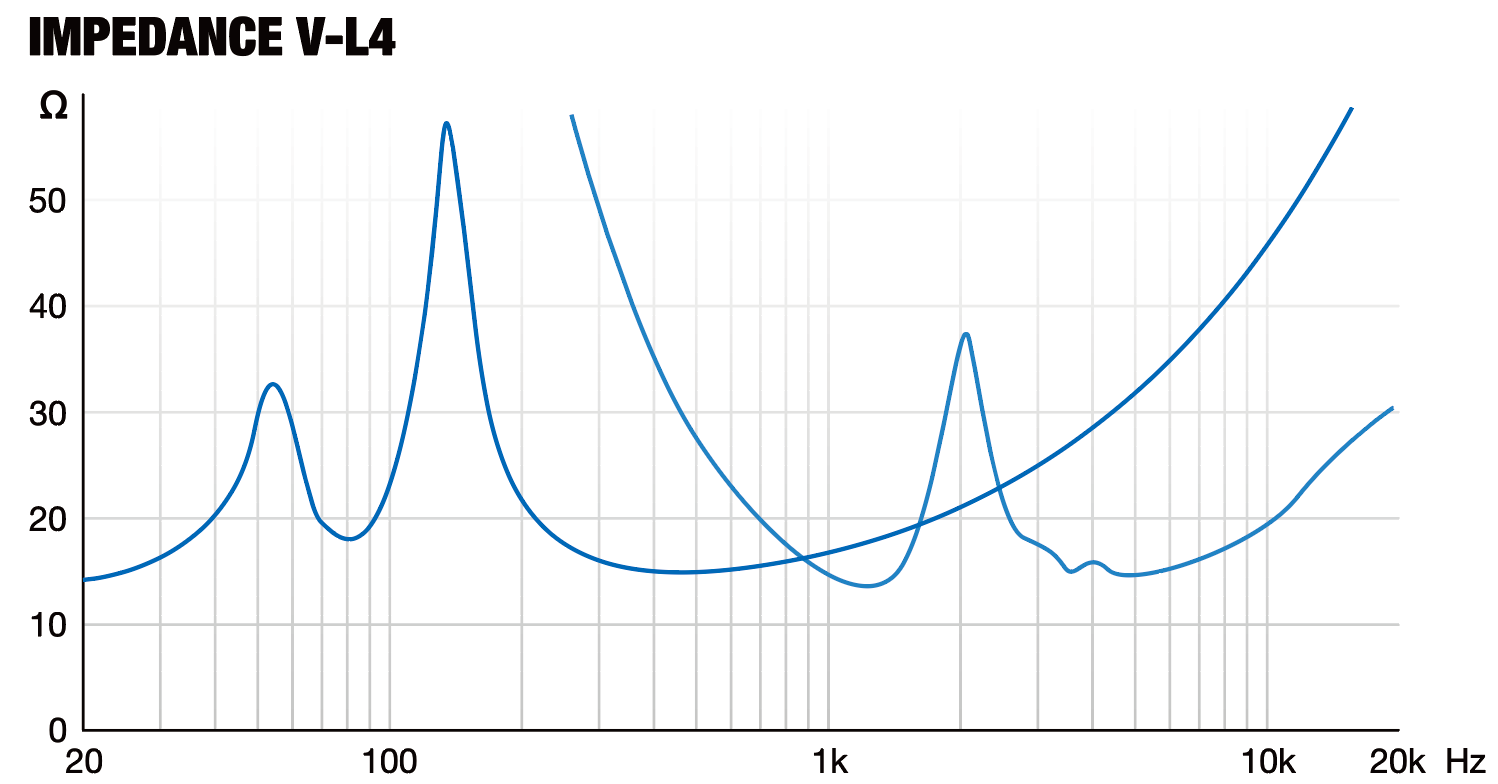

DIAGRAM
